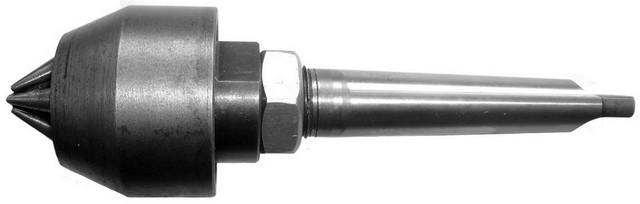

Tool for expanding tubes on “Bluebell”

Type

Used for tubes (outside diameter x wall thickness, mm)

Room cone of Morse

KO-10-18

10х1; 11х1,5; 12х1,2; 10х0,8; 11х1,2; 11х1; 12х1,5; 13х2; 12х1,2; 11х0,5; 12х1; 13х1,5; 14х2; 12х0,5; 13х1; 14х1,5; 16х2,5; 14х1; 15х1,5; 16х2; 14,5х0,75; 15х1; 16х1,5; 16х1; 18х2; 18х1

2

KO-18-36

19х1,5; 20х2; 19х1; 20х1,5; 21х2; 22х2,5; 20х1; 22х2; 19х1; 20х1,5; 21х2; 22х2,5; 21х1; 22х1.5; 22х1; 24х2; 25х2,5; 23х1; 24х1,5; 25х2; 24х1; 25х1,5; 26х2; 26х1; 27х1,5; 28х2; 29х2,5; 28х1,5; 28х1; 29х1,5; 30х1,5; 32х2,5; 30х1; 32х2; 32х1,5; 33х1,5; 35х1,5
